Bull pins and drift pins are both tapered steel tools used to bring misaligned holes into position before a bolt, rivet or other fastener is installed. Because their work overlaps, the names are sometimes used loosely. Their head design, taper and preferred applications create useful differences.
The pin aligns the work; it is not a substitute for the final fastener. Once the holes are brought into line and the connection is secured, the pin is removed.
Bull Pin vs. Drift Pin at a Glance
| Feature | Bull pin | Drift pin |
|---|---|---|
| Primary work | Structural steel and railroad alignment | General hole alignment, fabrication and assembly |
| Head | Usually a larger striking head | Often a smaller head or barrel-style body |
| Taper | Long working taper sized for connection holes | Gradual taper for entering and centering holes |
| Common handling | Driven and removed during erection work | Driven, hand-positioned or used progressively by size |
| Choose by | Maximum body diameter, length and head style | Working diameter, length and taper |
What Is a Bull Pin?
A bull pin is commonly used by ironworkers and railroad crews to align holes in heavy steel members. The tapered body enters overlapping holes and shifts the pieces toward alignment as the pin advances.
The head provides a defined surface for driving and helps prevent the tool from passing completely through the connection. Broad-head bull pins provide a larger head profile for particular work practices and handling preferences.
What Is a Drift Pin?
A drift pin, also called an aligning pin in many settings, uses a tapered working section to bring holes into line during fabrication, equipment assembly, scaffolding, truss work and structural connections.
Drift pins are available in multiple diameters so the tool can be matched to the hole and connection. A pin that is too small may not bring the holes fully into line; one that is too large may not enter far enough to work effectively.
The Practical Difference
A bull pin is generally the more specialized ironworking pattern, with a substantial head and dimensions suited to structural connections. A drift pin is the broader aligning category and is common in fabrication, assembly and maintenance as well as structural work.
In the field, terminology varies. The safest way to order the correct tool is to specify the required diameter, overall length, taper and head style instead of relying only on the name.
Broad-Head Bull Pins
The Broad Head Bull Pin retains the tapered alignment function while providing a larger striking head. Some variants may also be configured for tethering, which can be important when working at height.
A tether hole or attached tether does not by itself make a complete fall-protection system. Follow the tool, tether and jobsite requirements for the full connection.
How to Choose the Right Pin
- Match the pin’s maximum working diameter to the hole size
- Choose enough taper length to engage both pieces
- Select a head style appropriate for driving and removal
- Use tether-ready options when the jobsite requires tool tethering
- Confirm the tool is intended for alignment—not final load bearing
Warwood Alignment Pins
Broad Head Bull Pin
A tapered alignment pin with a larger head and available tether configurations.
View Broad Head Bull Pin

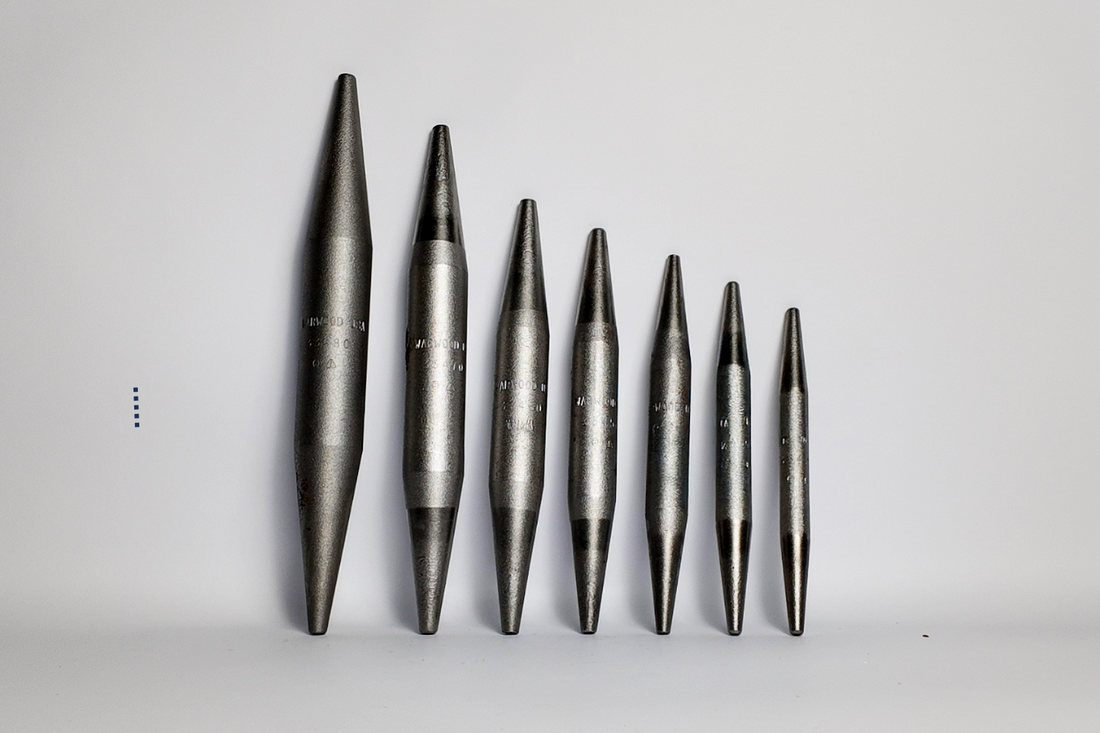

Drift Pin
Multiple diameters for aligning holes in fabrication, assembly and construction.
View Drift PinSafe Use
Inspect the pin and striking head before use. Remove tools with cracks, bends, chips or mushroomed heads from service. Wear appropriate eye and hand protection and use a hammer whose face and weight are suited to the pin.
Keep fingers away from closing gaps and never place any part of the body where shifting steel could trap it. Do not leave an alignment pin to carry the load of a connection or use it as a permanent fastener.
The Bottom Line
Both tools use taper to align holes. Bull pins are most closely associated with structural steel and railroad work, while drift pins cover a broader range of alignment and assembly tasks. Match the physical dimensions and head pattern to the connection rather than choosing by name alone.
